Applicability

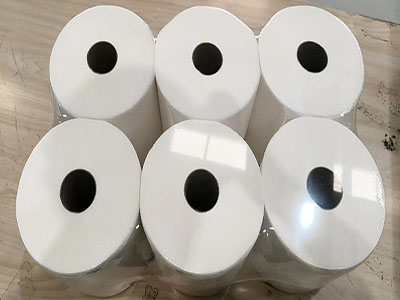

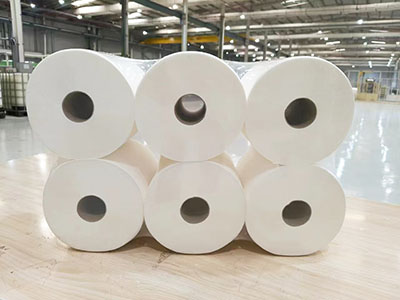

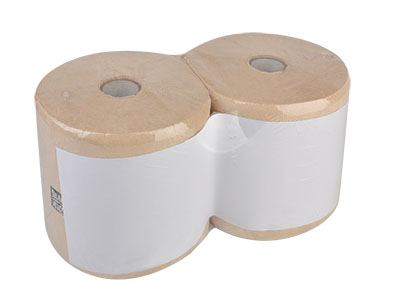

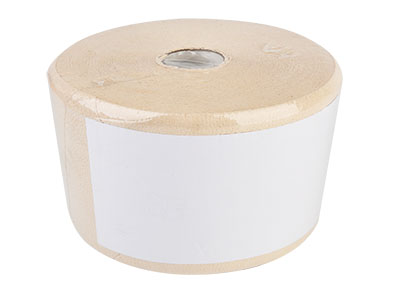

Suitable for toilet paper, jumbo rolls, maxi rolls, kitchen towels, non-woven fabric rolls and other paper products.Supports heat shrink wrapping for single roll, 2 rolls, 4 rolls, 6 rolls, 8 rolls, 12 rolls and other combinations.Widely used in toilet paper factories, tissue manufacturers, e-commerce and supermarket supply.
|
MODEL
|
RGL-6525
|
|
Sealing Type
|
Side Sealer
|
|
Installed Power
|
Sealer: 220V; 50-60Hz; 1Phase
|
|
Packing Capacity
|
10-20 Packs per Minute (Depends on Product Size)
|
|
Sealing Height
|
260MM
|
|
Packing Width
|
600MM
|
|
Packing Length
|
No Limit
|
|
Packing Size
|
(Width + Height) <640mm
|
|
Film Type
|
Center Folded POF Film
|
|
Max Film Roll Size
|
850MM (Width) X 280MM (Outer Diameter)
|
|
Working Height
|
780-850 MM
|
|
MODEL
|
RT-6030
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods/ Mesh Belt
|
|
Tunnel Oven Size
|
2000MM (L), Entrance 600(W) X 400(H) MM
|
|
Rated Power Consumption
|
Max. 16 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|

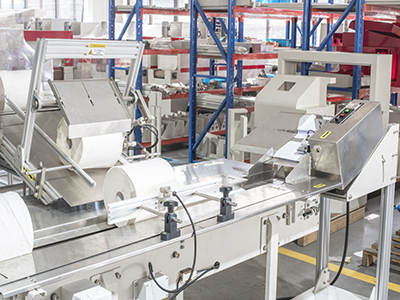

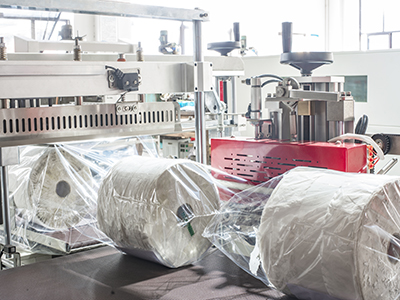

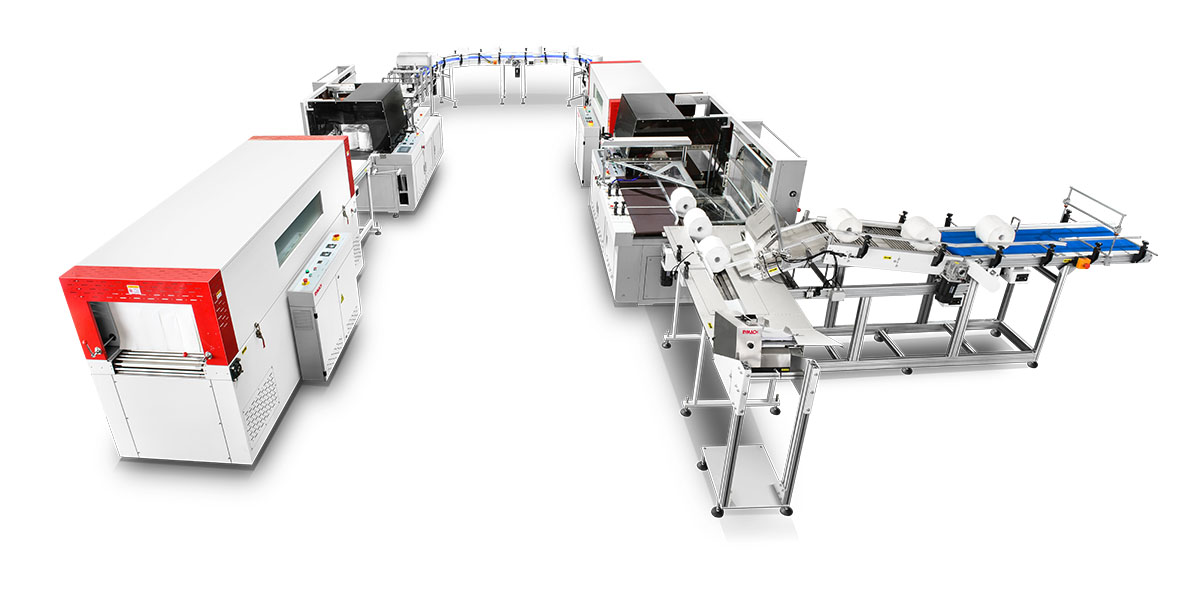

Part 1 Automatic Film Packing Machine
|
|
|
|

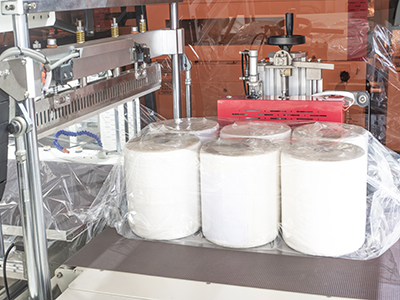

This sealing and cutting unit is specially designed for wrapping toilet paper and jumbo rolls.It can stably pack single roll, 2 rolls, and 6 rolls with quick size change and strong adaptability.
Adopting precise constant-temperature sealing and cutting technology,it ensures firm and tight sealing, no film breaking or opening,with smooth and nice sealing lines for an attractive finished look.
Equipped with automatic label feeding function,no manual labeling is needed.
Sealing/cutting and labeling are completed synchronously,making the process smoother and greatly improving production efficiency and standardization.
The machine runs stably and reliably, meeting the demands of high-volume factory production.
|

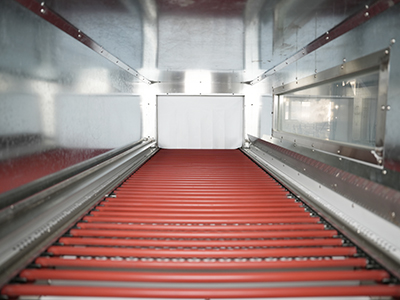

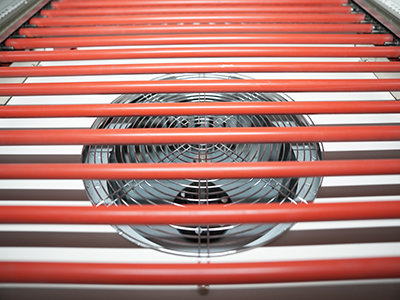

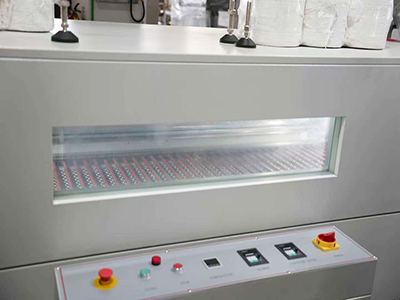

Part 2 Automatic Shrink Tunnel Machine
|
|
|
|
Fast and even heating, perfect shrink effect with tight and smooth appearance
Stable temperature control, strong adaptability to various films
Energy-saving design, high efficiency and low consumption
Compact structure, easy operation and maintenance
Suitable for high-speed production lines, greatly improving packaging quality
|
