Applicability
Various books: hardcover books, paperback books, textbooks, teaching materials, picture books
Notebooks: hardcover notebooks, softcover notebooks, spiral notebooks, loose-leaf notebooks, notepads, exercise books
Printed materials: magazines, catalogs, manuals, brochures, photo albums, folders
Other stationery, paper products and stationery gift boxes with similar dimensions
|
MODEL
|
RGL-5525
|
|
Sealing Type
|
Side Seal Reciprocating Type
|
|
Installed Power
|
380V; 50-60HZ; 3Phase
|
|
Packing Capacity
|
50-60 packs per minute (depends on product size)
|
|
Sealing Height
|
220MM
|
|
Packing Width
|
450MM
|
|
Product Size
|
Width+Height≤450mm; Length: Infinite.
|
|

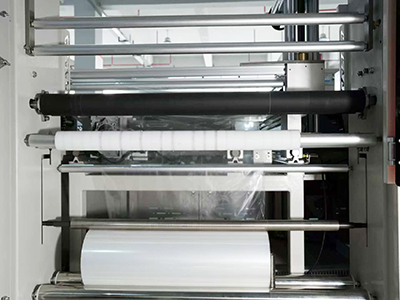

Film Type
|
Center Folded POF Film
|
|
Max Film Roll Size
|
750MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
5.5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Machine Material
|
Carbon Steel
|
|
Sealing Machine Dimensions
|
1610 X 900 X 1530 MM
|
|
Sealing Machine Weight
|
1505KGS
|
|
MODEL
|
RT-5530
|
|
Installed Power
|
380V; 50-60HZ; 3Phase
|
|
Oven Size
|
2400MM (L), Entrance 550(W) X 300(H) MM
|
|
Conveyor Speed
|
Variable
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Rated Power Consumption
|
16 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
1550 X 700 X 1300 MM
|
|
Tunnel Weight
|
480KGS
|

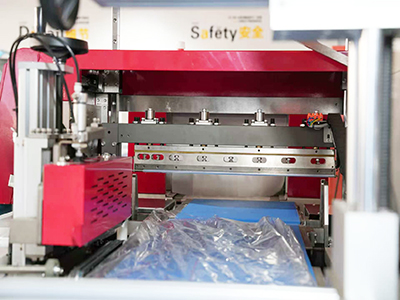

Part 4 Automatic Film Packing Machine
|
|
|
|
Dustproof, moisture-proof, anti-fouling and anti-damage, improving product appearance and grade
Suitable for single-piece or multi-piece collective packaging to meet different delivery needs
Smooth sealing and cutting, uniform shrinkage, transparent and attractive appearance
Stable operation, high efficiency, easy adjustment and strong compatibility
Compatible with environmentally friendly heat shrink films such as POF
|
Part 4 Shrink Tunnel Machine
|
|
|
|

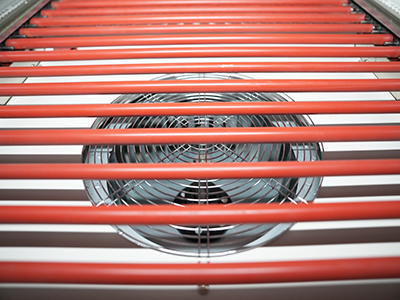

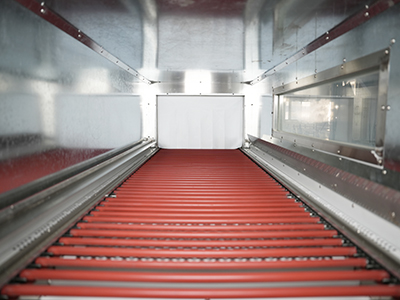

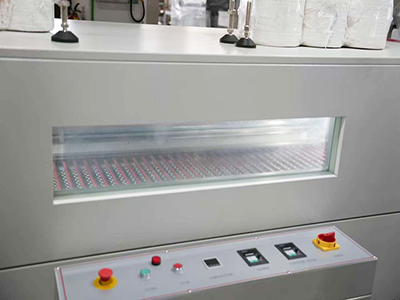

This heat shrink tunnel is equipped with internal air circulation system and visual observation window. The internal circulating hot air ensures even and stable heating, making the shrink effect smoother and more attractive. The visual window allows real-time monitoring of the packaging process safely and intuitively. It features fast heating, small temperature difference and high energy efficiency, suitable for various films like POF and PE. Stable performance and low failure rate greatly improve product appearance and production efficiency.
|
