Applicability

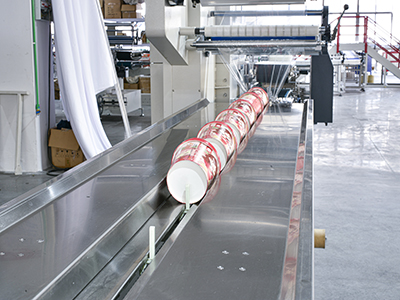

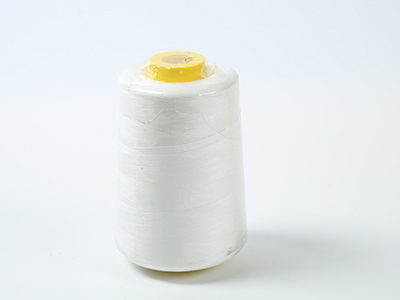

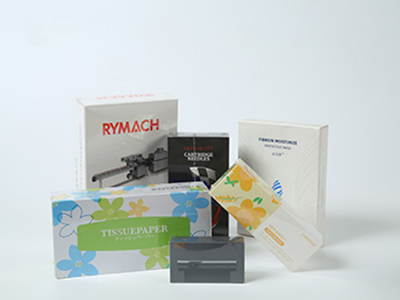

Items packaged with shrink film, such as bowl noodles, milk tea, cup products, frozen products, dried noodles, fruit milk, mosquito coils, food boxes, cosmetics, cooked bottles, incense coils, etc., either individually or collectively.

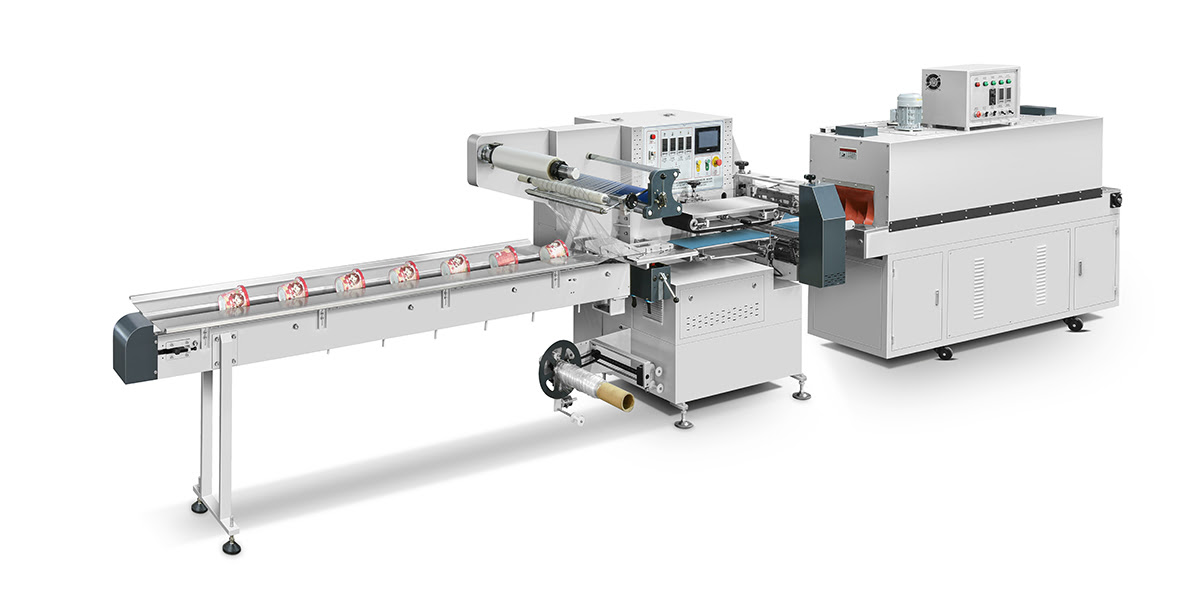

Electrostatic adherence shrink packing machine adopts non-heating center seal technology to replace heating device, the power consumption of the whole machine can be reduced by 1000W. Moreover, it can seal without waste film.
|
MODEL
|
RS-590
|
|
Sealing Type
|
High Speed Flow Type Sealing
|
|
Installed Power
|
Sealer: 220V; 50-60Hz; 1Phase
|
|
Packing Capacity
|
50-150 Packs per Minute (Depends on Product Size)
|
|
Sealing Height
|
5-35mm; 35-60mm; 60-90mm; 90-130mm
|
|
Packing Width
|
10-170MM
|
|
Packing Length
|
50-450MM
|
|
Packing Size
|
(Width+Height)*2+100mm<590mm
|
|
Film Type
|
Single Layer POF Film
|
|
Max Film Roll Size
|
590MM (Width) X 280MM (Outer Diameter)
|
|
Working Height
|
780-850 MM
|
|

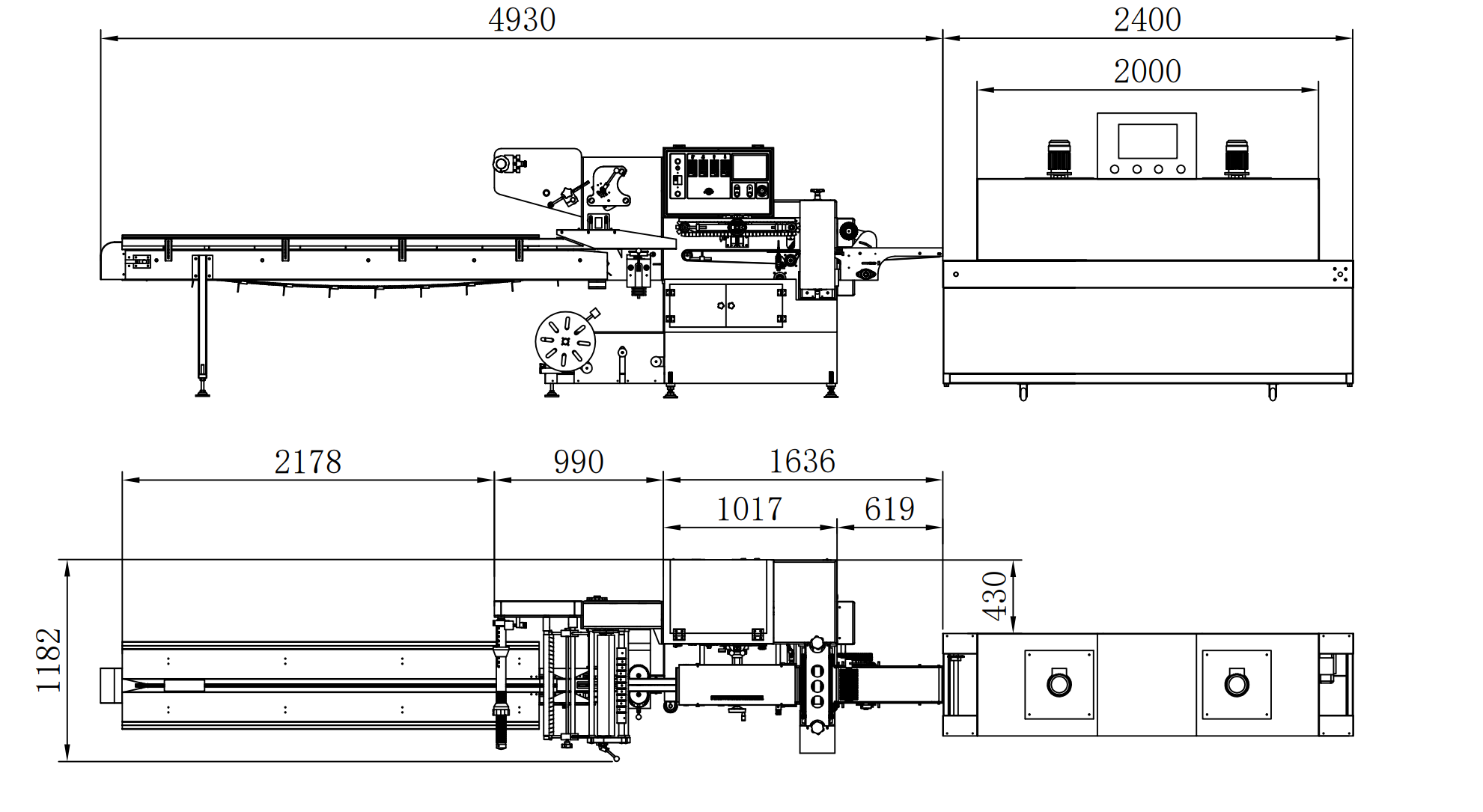

Sealing Machine Dimensions
|
4930 X 1130 X 1500 MM
|
|
Sealing Machine Weight
|
775kg
|
|
MODEL
|
RT-3025S
|
|
Conveyor
|

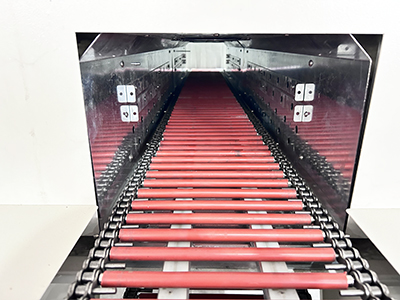

Chains with Rotating Silicon Coated Rods/ Mesh Belt
|
|
Tunnel Oven Size
|
2000MM (L), Entrance 350(W) X 250(H) MM
|
|
Rated Power Consumption
|
Max. 16 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
2400 X 600 X 1550 MM
|
|
Tunnel Weight
|
365kg
|

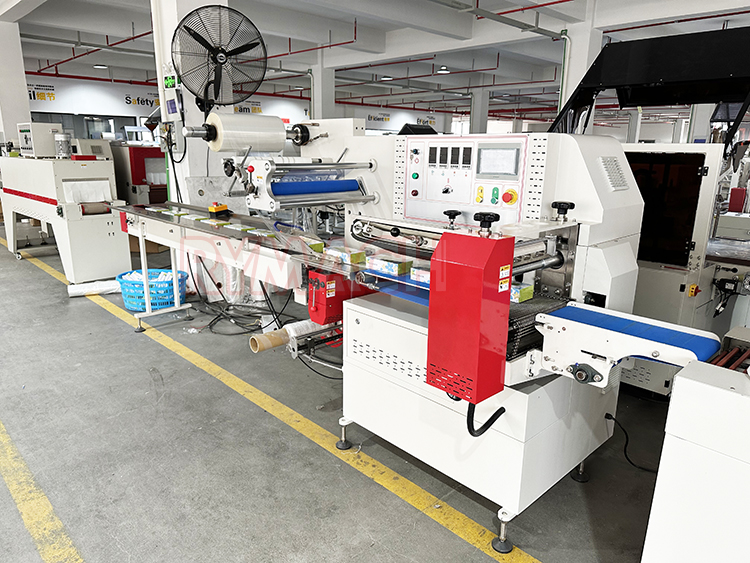

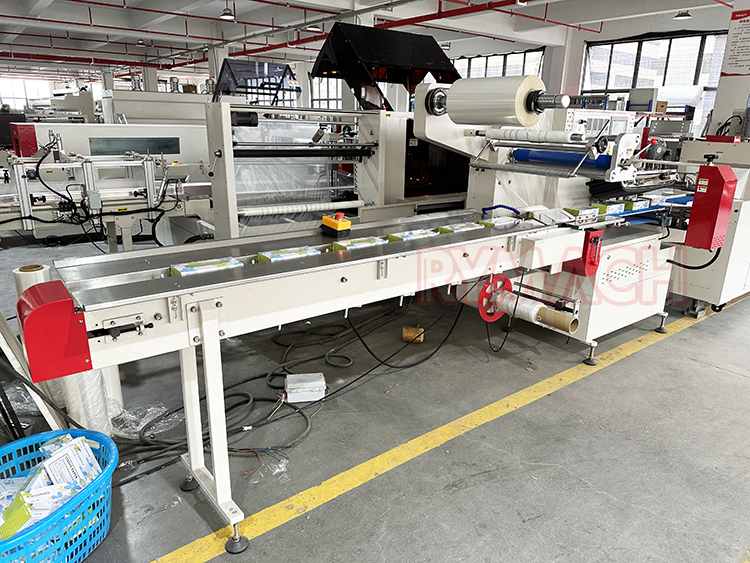

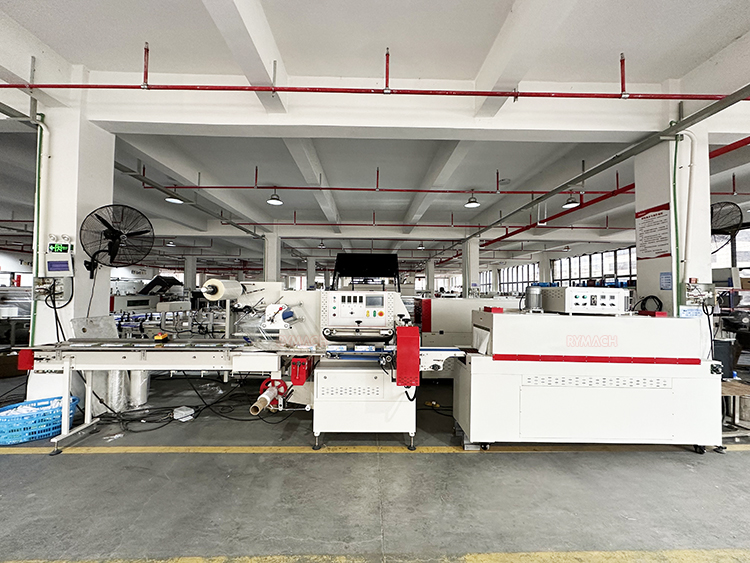

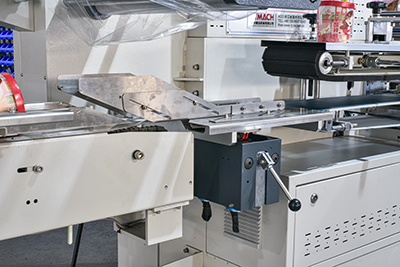

Part 1 Automatic Film Packing Machine
|
|
|
|
High efficiency & stable continuous operation

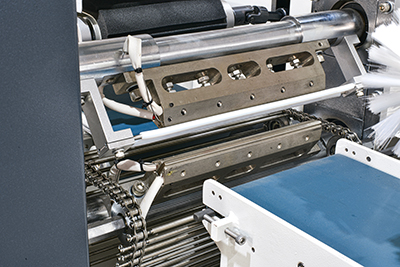

Precise sealing & cutting, smooth, firm seals
Uniform heat shrink effect, attractive packaging
Strong dustproof & moisture-proof performance
Wide adaptability to various product sizes
Easy operation, low energy consumption & film saving
|

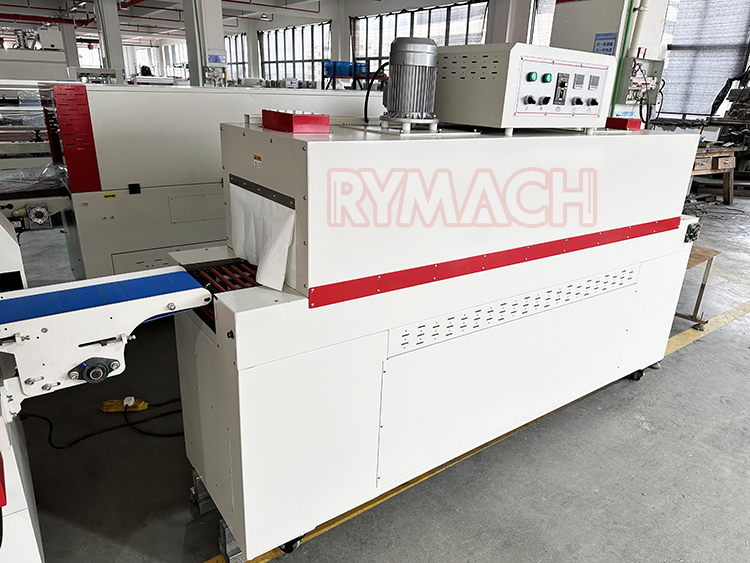

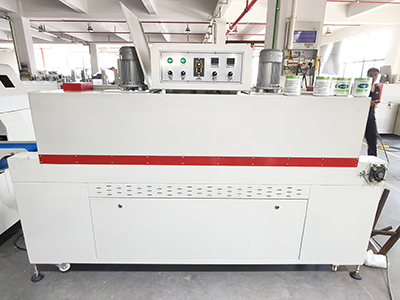

Part 2 Automatic Shrink Tunnel Machine
|
|
|
|
Fast and even heating, perfect shrink effect with tight and smooth appearance

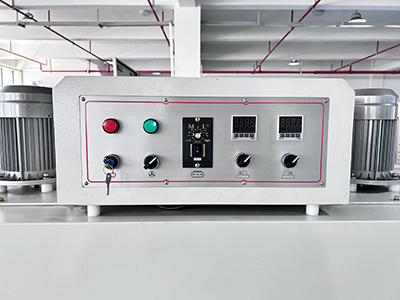

Stable temperature control, strong adaptability to various films
Energy-saving design, high efficiency and low consumption
Compact structure, easy operation and maintenance
Suitable for high-speed production lines, greatly improving packaging quality
|
