Applicability
RSG-1000 machine is specially designed for heat shrink packaging of pizza boxes, adopting a double-side cutting & sealing structure, which ensures stable operation, smooth sealing and uniform shrinkage. It is widely used for automatic film wrapping and packaging of various pizza boxes.
Suitable for pizza boxes of different sizes: 6-inch, 7-inch, 8-inch, 9-inch, 10-inch, 12-inch, etc.
Disposable food-grade pizza boxes, thickened anti-grease pizza boxes, takeaway pizza boxes
Square/rectangle paper boxes for bakery, fast food, and other similar paper containers
|
MODEL
|
RSG-1000
|
|
Sealing Type
|
Four Sides Sealing, Full Closed Sealing
|
|
Installed Power
|
380V/50-60HZ/3Phase
|
|
Packing Capacity
|
5-10 Packs per Minute (Depends on Product Size)
|
|
Sealing Height
|
500MM
|
|
Packing Width
|
1400MM
|
|
Product Size
|
Width + Height ≤ 1400MM
|
|
Film Type
|
Single layer POF/ PE Film
|
|
Max Film Roll Size
|
1800MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Operating Panel
|
Siemens Colorful Touch Screen, PLC
|
|
Sealing Machine Weight
|
1980KGS
|
|
Sealing Machine Dimensions
|
2300 X 1500 X 1100 MM
|
|
SHRINK TUNNEL
|
|
Oven Size
|
Depends on product size (Length, width and height)
|
|
Conveyor Speed
|
Variable, 40 M/Min
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
2500 X 1100 X 1270 MM
|
|
Tunnel Weight
|
1835KGS
|

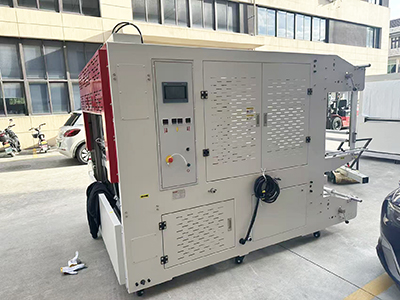

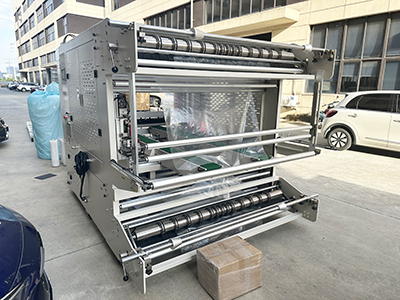

Part 4 Automatic Film Packing Machine
|
|
|
|

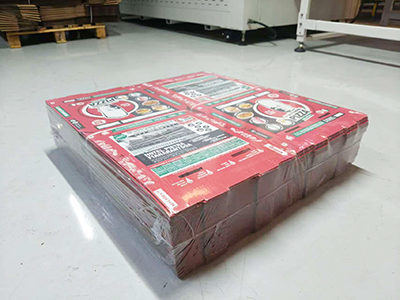

Single-box or multi-box combination packaging
Prevents opening, dirt, moisture and deformation
Improves product appearance and shelf display effect
Compatible with food-grade POF/PE shrink films, meeting food hygiene standards
Double-side cutting design, flat and clean cut, no sticking or breaking
Easy size adjustment for quick change between different box specifications
Fully automatic feeding, sealing, cutting and shrinking for mass production
|

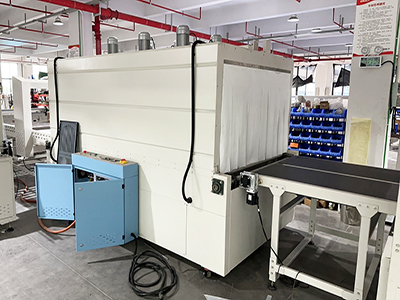

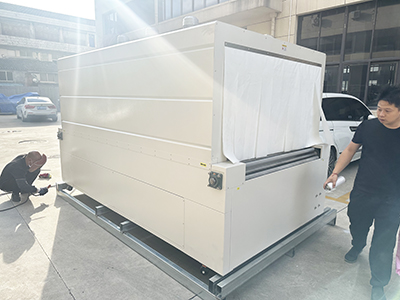

Part 4 Shrink Tunnel Machine
|
|
|
|
This large shrink tunnel is specially matched with double-edge cutting packaging machine, featuring strong hot air circulation and precise temperature control system. It provides uniform and stable heating, ensuring perfect shrink effect with tight, smooth and beautiful appearance for large and wide products. With high efficiency, energy saving, good sealing and strong stability, it is suitable for high-speed and large-volume production lines, greatly improving packaging quality and overall production efficiency.
|
