880P + RT-6040

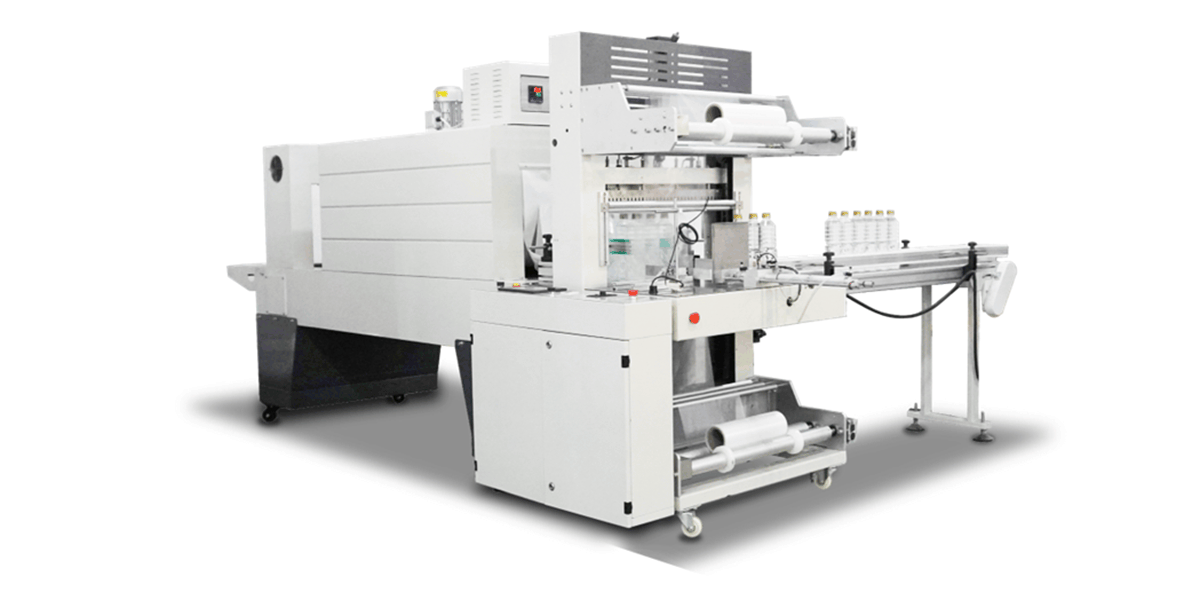

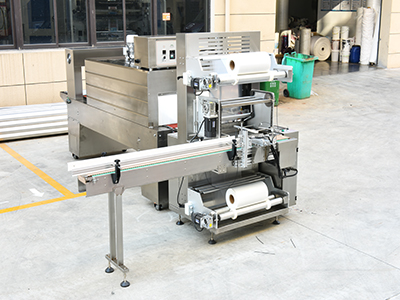

Automatic Sleeve Sealing Shrink Wrapping Machine (Bottles Group Packaging)
View Video
Product Details
| MODEL | RX-88P |
| Sealing Type | Sleeve Sealer |
| Sealing Height | 300MM |
| Packing Width | 400MM |
| Packing Size | Width + Height < 720MM |
| Max Film Roll Size | 800mm (Width) X 280mm (Outer Diameter) |
| Power Consumption | 1.8 KW |
| Sealing Machine Dimensions | 2100 X 970 X 1600 MM |
| Packing Capacity | Max. 20 Packs per Minute (Depends on Product Size) |
| Installed Power | 380V/50-60HZ/3Phase |
| Film Thickness | 30-100 Micron (Minimum-Maximum) |
| Film Type | PE Film |
| Working Height | 780-850 MM |
| Air Pressure | 0.5MPA (5 BAR) |
| Sealing Knife | Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats |
| Sealing Knife | Carbon Steel / Stainless Steel |
| MODEL | RT-6040 |
| Oven Size | 1500MM (L), Entrance 600(W) X 400(H) MM |
| Tunnel Machine Dimensions | 2200 X 750 X 1470 MM |
| Rated Power Consumption | Max. 16 KW |
| Power Supply | 380V/50-60HZ/3Phase |
| Conveyor | Chains with Rotating Silicon Coated Rods |
| Working Height | 780 - 850 MM |
| Machine Material | Carbon Steel / Stainless Steel |
| Weight(Net/ Gross) | 830KGS/ 900KGS (For Reference Only, Including Sealer and Tunnel) |
|
Part 4 Automatic Film Packing Machine |
||
 |
 |
 |
|

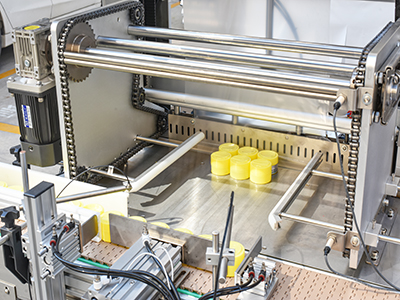

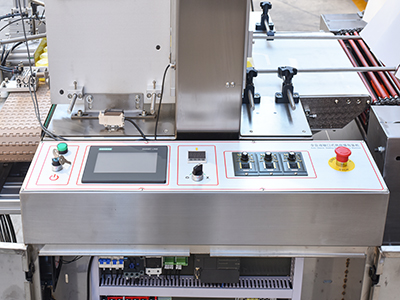

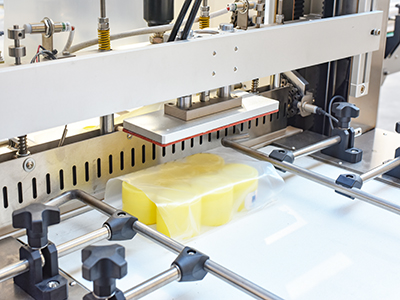

As the core unit of fully automatic sleeve packaging machine, this sealing and cutting machine adopts constant temperature precise control and anti-sticking sealing knife, ensuring firm and flat sealing without film sticking or edge burning. With accurate positioning system, it features small cutting error and low defective rate. It can fully automatically link with production lines, realizing automatic film feeding, sealing & cutting, and waste recycling without manual operation, greatly improving efficiency and saving labor cost. The sealing knife is made of high-strength wear-resistant material with long service life, easy to disassemble and maintain. Equipped with safety protection device, it is more reliable and stable. The width, length and temperature can be adjusted quickly, compatible with various films and products of different sizes, suitable for food, beverage, daily chemical and other industries. Controlled by PLC intelligent system, parameters can be set with one key. It combines excellent sealing quality, high efficiency and safety, making it an ideal choice for automatic packaging lines. |
||
|
Part 4 Shrink Tunnel Machine |
||
 |
 |
 |
|

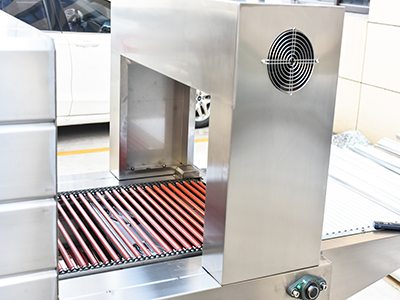

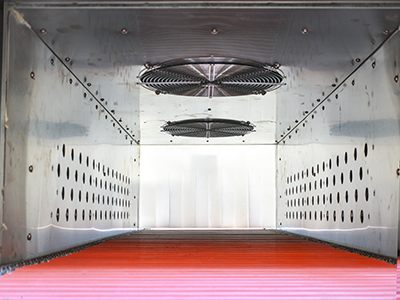

This shrink tunnel is specially designed for PE heat-shrink film, with uniform hot air circulation and precise, stable temperature control. It ensures the PE film shrinks fully and evenly, wrapping products tightly. The finished packaging is firm, flat, wrinkle-free and film-breakage-proof. After shrinking, the package features high strength and excellent load-bearing capacity, holding the product and carton firmly together. It effectively prevents collision, loosening and scattering during transportation, greatly improving transportation safety. The machine is compatible with various product sizes and works seamlessly with fully automatic sleeve machines, realizing automatic integration from film feeding, sealing and cutting to shrinking. It features high efficiency and low labor demand. With even heating, no film burning, stable long-term operation and low energy consumption, it is widely used in packaging heavy goods such as beverages, food, building materials and chemicals. This shrink tunnel with PE film not only ensures attractive and firm packaging but also significantly improves transportation stability and stacking load-bearing capacity, reducing logistics loss. It is an efficient and reliable automatic packaging solution. |
||

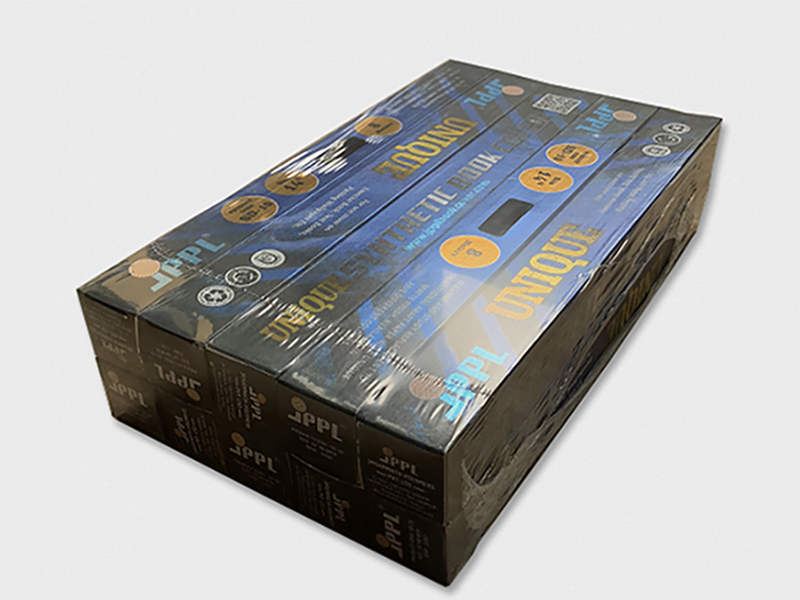

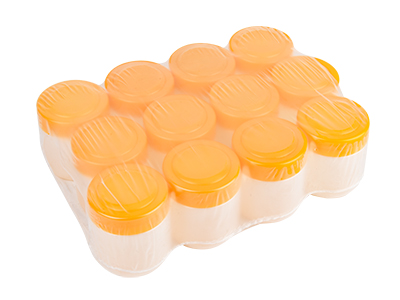

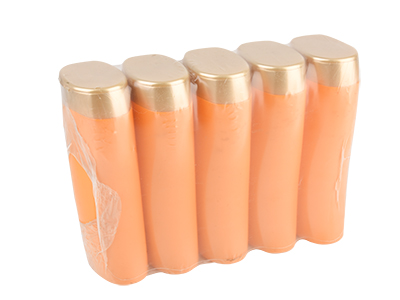

Sample Packed
Layout
