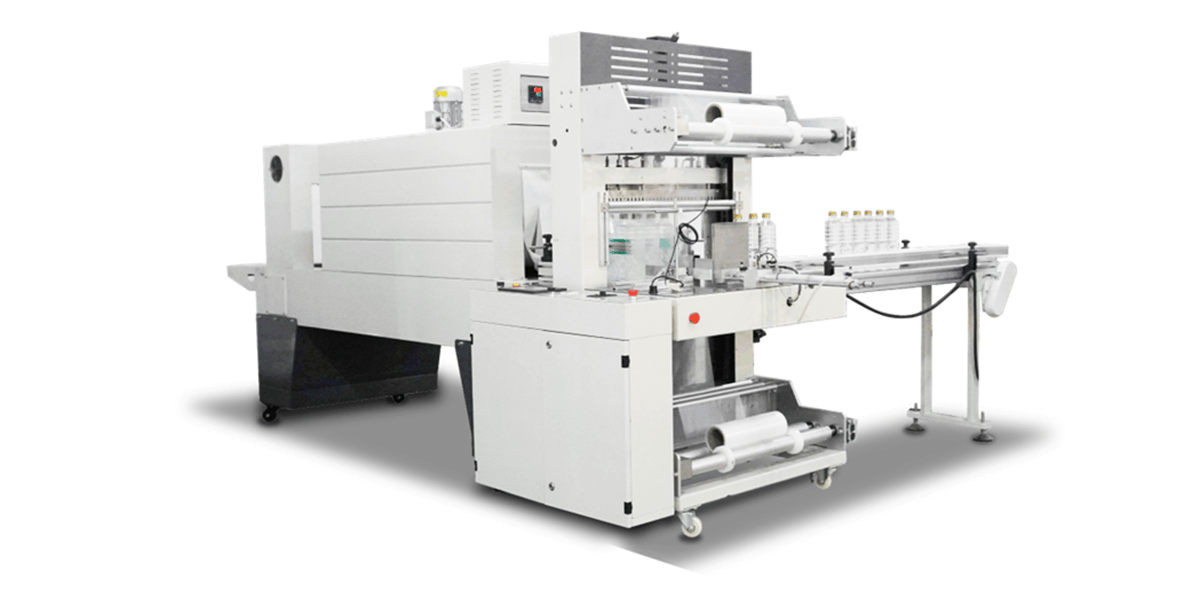

RX-1000P + RT-8060

Automatic Sleeve Sealing Shrink Wrapping Machine (Bottles Group Packaging)

View Video

Send Inquiry

Product Details

MODEL	RX-1000P
Sealing Type	Sleeve Sealer
Sealing Height	400MM
Packing Width	600MM
Packing Size	Width + Height < 1000MM
Max Film Roll Size	1200mm (Width) X 280mm (Outer Diameter)
Power Consumption	5.8 KW
Sealing Machine Dimensions	1800 X 1450 X 1800 MM
Packing Capacity	Max. 20 Packs per Minute (Depends on Product Size)
Installed Power	380V/50-60HZ/3Phase
Film Thickness	30-100 Micron (Minimum-Maximum)
Film Type	PE Film
Working Height	780-850 MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Sealing Knife	Carbon Steel / Stainless Steel
Sealer Weight	550KGS
MODEL	RT-8060
Oven Size	2000MM (L), Entrance 800(W) X 600(H) MM
Tunnel Machine Dimensions	3440 X 1140 X 1850 MM
Rated Power Consumption	Max. 28 KW
Power Supply	380V/50-60HZ/3Phase
Conveyor	Chains with Rotating Silicon Coated Rods
Working Height	780 - 850 MM
Machine Material	Carbon Steel / Stainless Steel
Tunnel Weight	650KGS

Part 4 Bag Collecting Machine

The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.

Part 4 Bag Collecting Machine

The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.

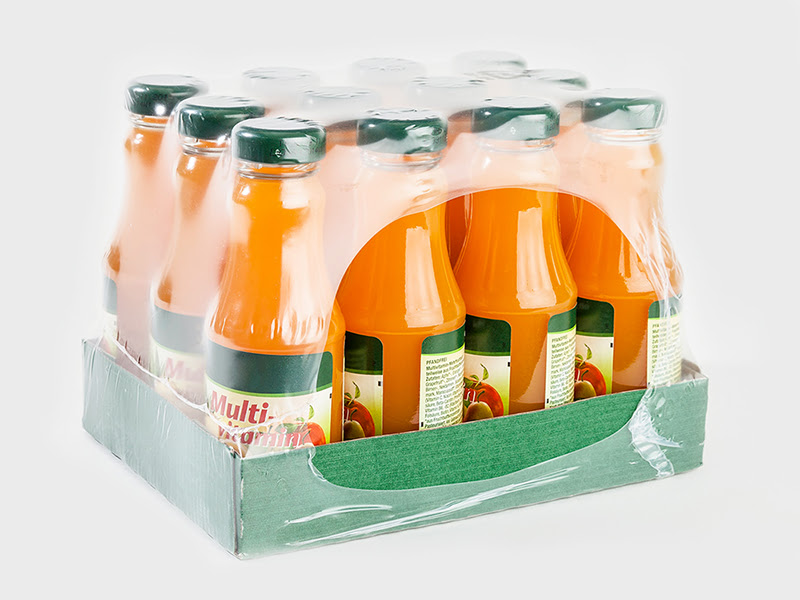

Sample Packed

Layout

RX-880 + RT-6040

RX-880D + RT-6040

880P + RT-6040

RX-1000 + RT-8060

RX-1000D + RT-8060

Product Details

MODEL	RX-1000P
Sealing Type	Sleeve Sealer
Sealing Height	400MM
Packing Width	600MM
Packing Size	Width + Height < 1000MM
Max Film Roll Size	1200mm (Width) X 280mm (Outer Diameter)
Power Consumption	5.8 KW
Sealing Machine Dimensions	1800 X 1450 X 1800 MM
Packing Capacity	Max. 20 Packs per Minute (Depends on Product Size)
Installed Power	380V/50-60HZ/3Phase
Film Thickness	30-100 Micron (Minimum-Maximum)
Film Type	PE Film
Working Height	780-850 MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Sealing Knife	Carbon Steel / Stainless Steel
Sealer Weight	550KGS
MODEL	RT-8060
Oven Size	2000MM (L), Entrance 800(W) X 600(H) MM
Tunnel Machine Dimensions	3440 X 1140 X 1850 MM
Rated Power Consumption	Max. 28 KW
Power Supply	380V/50-60HZ/3Phase
Conveyor	Chains with Rotating Silicon Coated Rods
Working Height	780 - 850 MM
Machine Material	Carbon Steel / Stainless Steel
Tunnel Weight	650KGS

Part 4 Bag Collecting Machine

The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.

Part 4 Bag Collecting Machine

The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.

Sample Packed

Layout

RX-880 + RT-6040

RX-880D + RT-6040

880P + RT-6040

RX-1000 + RT-8060

RX-1000D + RT-8060
