Applicability

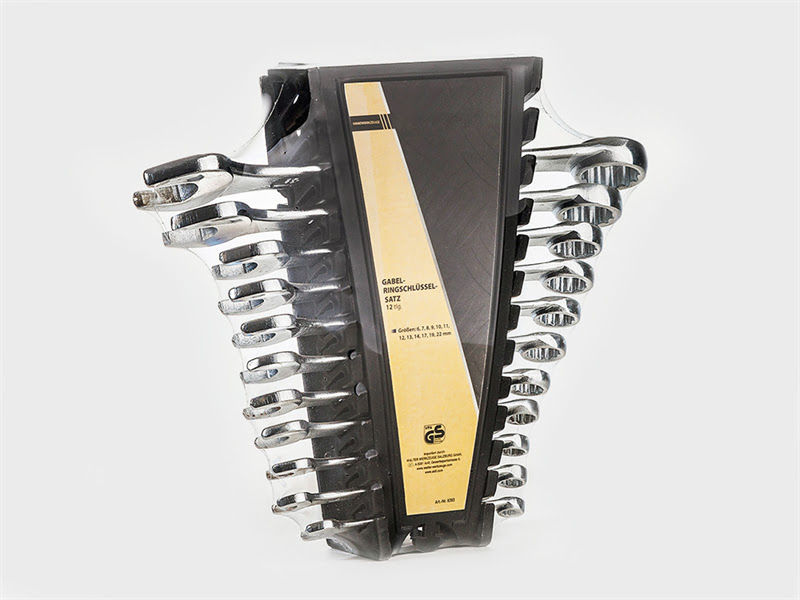

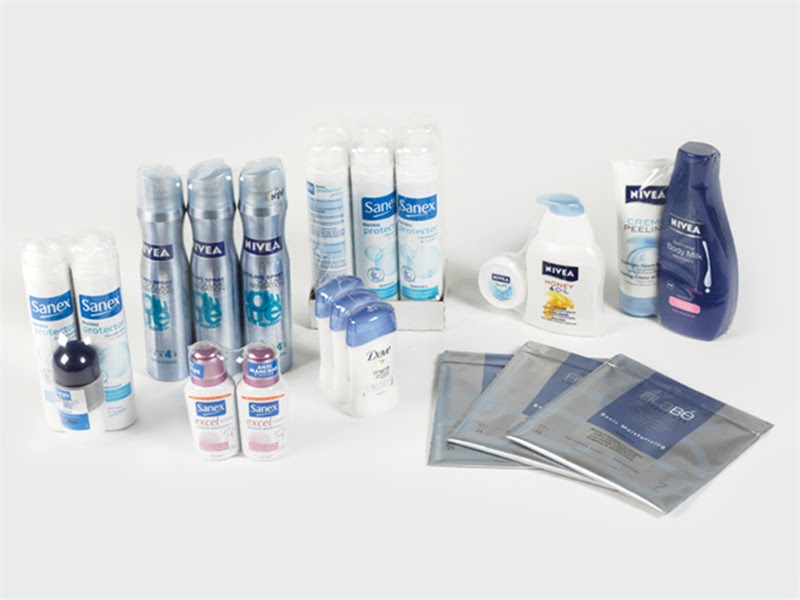

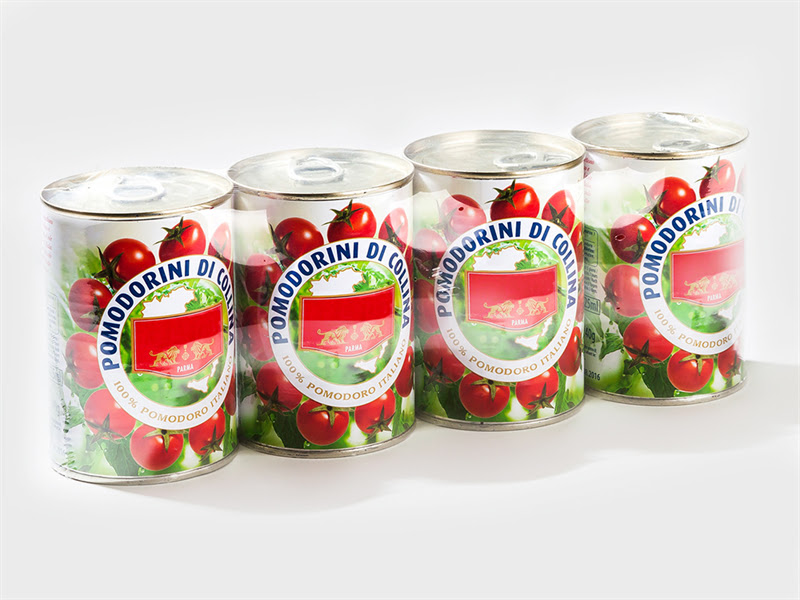

This machine is suitable for single or group products packaging of hardware, food, pharmaceuticals, books, CDs, glass products, paper towels, cards, photo frames, picture frames, aluminum profiles, wood products, pesticide bottles and other products.
|
MODEL
|
RG-4020
|
|
Sealing Type
|
Full Cover Side Sealing Machine
|
|
Installed Power
|
220V; 50-60HZ; 1Phase
|
|
Packing Capacity
|
15-35 packs per minute (depends on product size)
|
|
Sealing Height
|
200MM
|
|
Packing Width
|
350MM
|
|
Product Size
|
Width+Height≤400mm; Length: Infinite.
|
|
Film Type
|
Center Folded POF Film
|
|
Max Film Roll Size
|
530MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
1.5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Machine Material
|
Carbon Steel
|
|
Sealing Machine Dimensions
|
1800 X 950 X 1580 MM
|
|
Sealing Machine Weight
|
480KGS
|
|
MODEL
|
RT-4525
|
|
Installed Power
|
380V; 50-60HZ; 3Phase
|
|
Oven Size
|
1500MM (L), Entrance 450(W) X 250(H) MM
|
|
Conveyor Speed
|
Variable
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Rated Power Consumption
|
7 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
1800 X 700 X 1300 MM
|
|
Tunnel Weight
|
318KGS
|

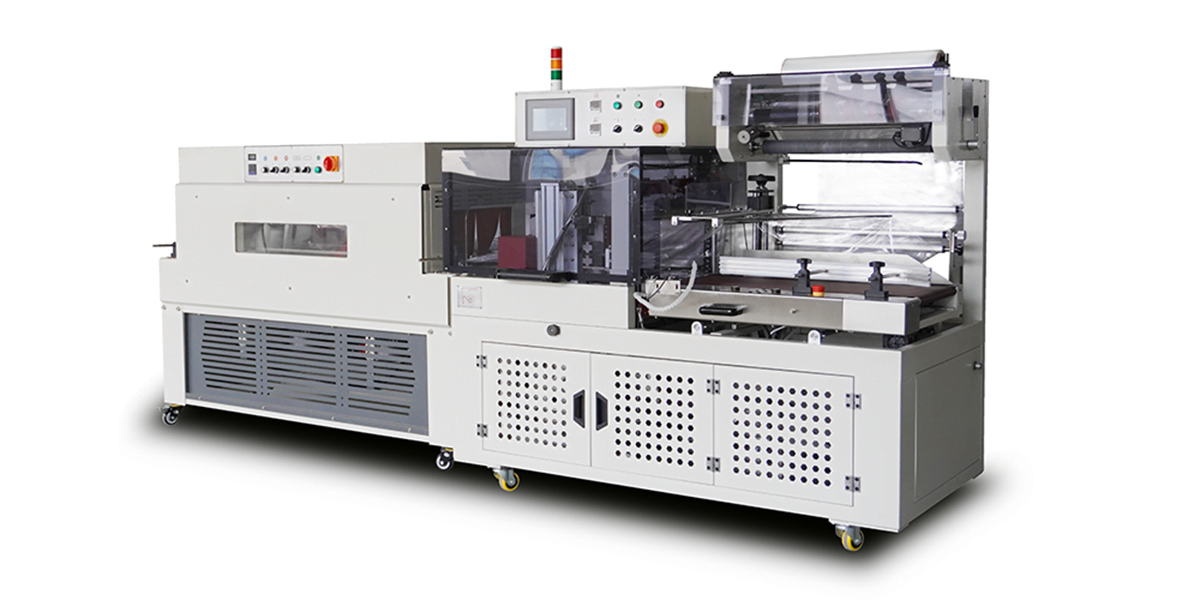

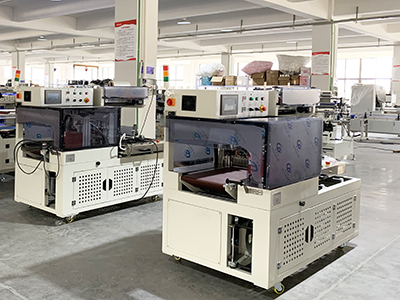

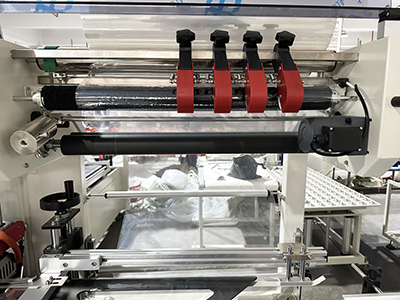

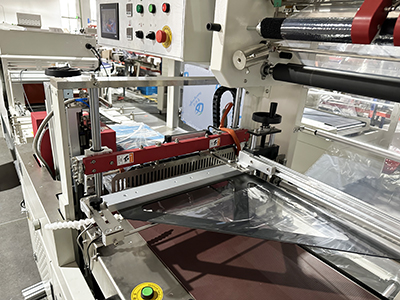

Part 1 Automatic Film Packing Machine
|
|
|
|
Ideal for long products, unlimited length:
With continuous side sealing structure, it supports stable packaging for aluminum profiles, pipes, boards, long parts, furniture components and other extra-long items. Both long and short products run smoothly.
Premium brand electric parts for reliability:
Equipped with world-class Schneider, Panasonic, Omron electric components. Precise PLC control, stable servo positioning, and accurate temperature control ensure high-speed & long-hour running.
Perfect sealing:

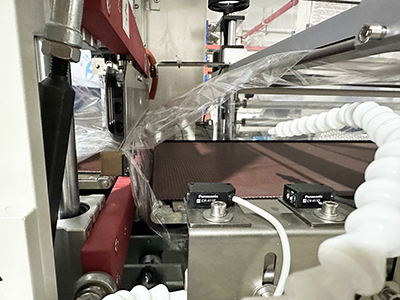

Teflon-coated cutting blades provide firm, clean, non-sticky sealing. Automatic length detection, high efficiency, compatible with POF film, and easy to connect with production lines.
|

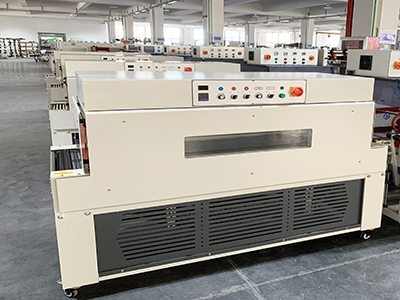

Part 2 Shrink Tunnel Machine
|
|
|
|
This machine is equipped with a high-efficiency constant-temperature hot-air circulating shrink tunnel with a thickened insulation layer, which features fast heating, low energy consumption, and stable & uniform temperature.The front of the tunnel is designed with a large visual observation window, allowing you to monitor the shrinking process in real time and adjust parameters promptly to ensure consistent and perfect shrink results.
Adopting a bottom strong fan + circulating air duct design, hot air evenly wraps around the product from bottom to top, ensuring even heating without dead corners and avoiding product displacement.It is especially suitable for long, large and irregular products.After shrinking, the film surface is smooth, wrinkle-free, spotless and without scorch marks, making the packaged product look attractive and transparent, greatly improving product appearance and market competitiveness.
|
