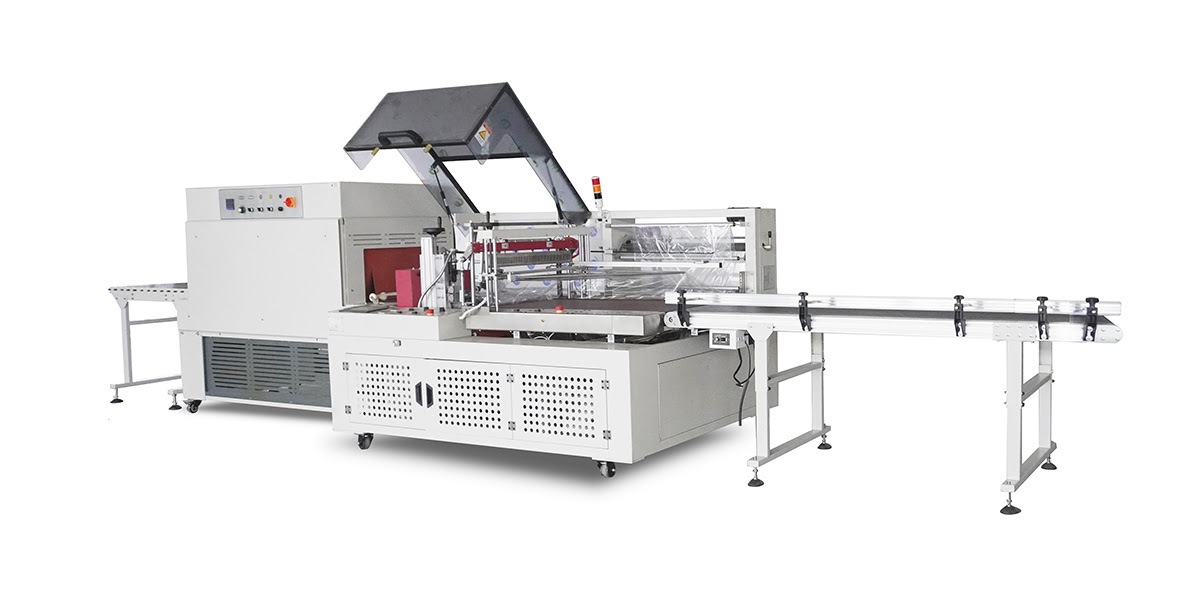

RG-6525 + RT-6030

Automatic Side Sealing Shrink Packing Machine

View Video

Send Inquiry

Product Details

Applicability

Longer products such as flooring boards, paper rolls, etc.

MODEL	RG-6525
Sealing Type	Full Cover Side Sealing Machine
Installed Power	220V; 50-60HZ; 1Phase
Packing Capacity	15-35 packs per minute (depends on product size)
Sealing Height	250MM
Packing Width	600MM
Product Size	Width+Height≤650mm; Length: Infinite.
Film Type	Center Folded POF Film
Max Film Roll Size	830MM (Width) X 280MM (Outer Diameter)
Power Consumption	1.5 KW
Working Height	780-850 MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material	Carbon Steel
Sealing Machine Dimensions	2250 X 1450 X 1450 MM
Sealing Machine Weight	740KGS
MODEL	RT-6030
Installed Power	380V; 50-60HZ; 3Phase
Oven Size	1500MM (L), Entrance 600(W) X 300(H) MM (Tunnel Length Depends on Product Length)
Conveyor Speed	Variable
Conveyor	Chains with Rotating Silicon Coated Rods
Rated Power Consumption	7 KW
Working Height	780 - 850 MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	1810 X 980 X 1560 MM
Tunnel Weight	500KGS

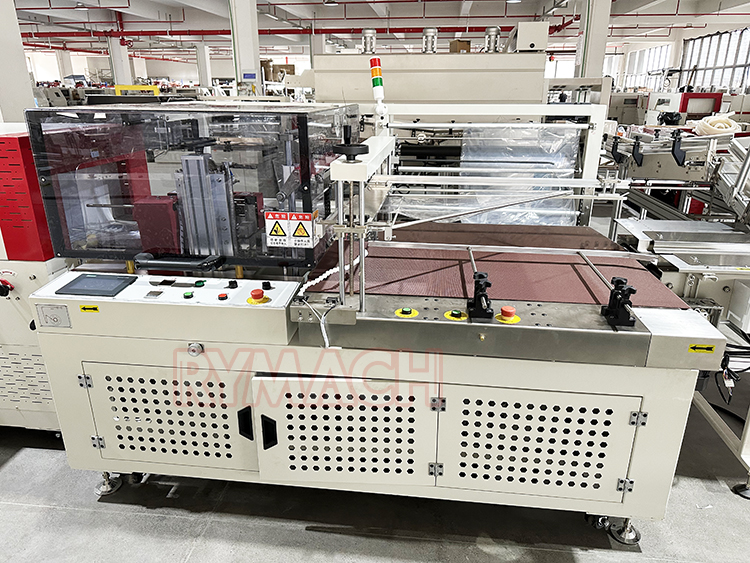

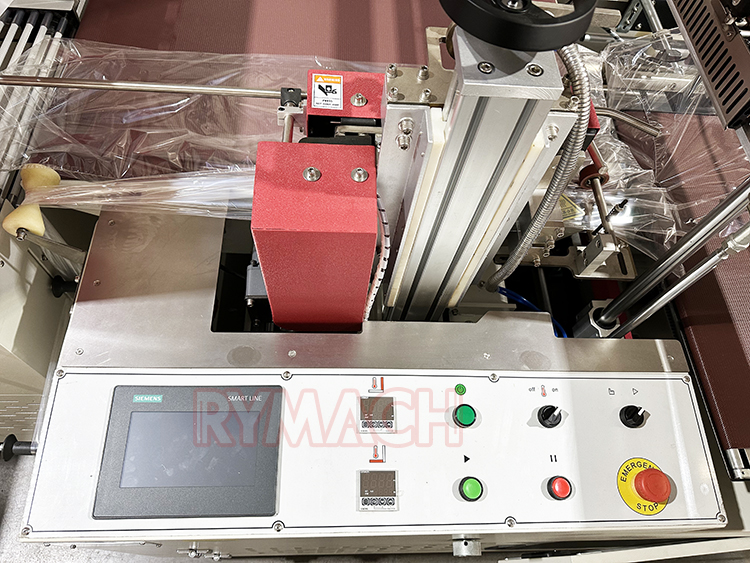

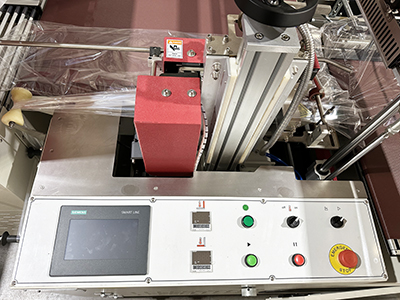

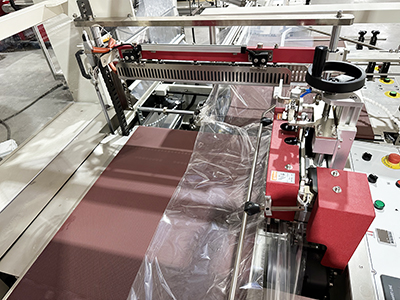

Part 4 Automatic Film Packing Machine

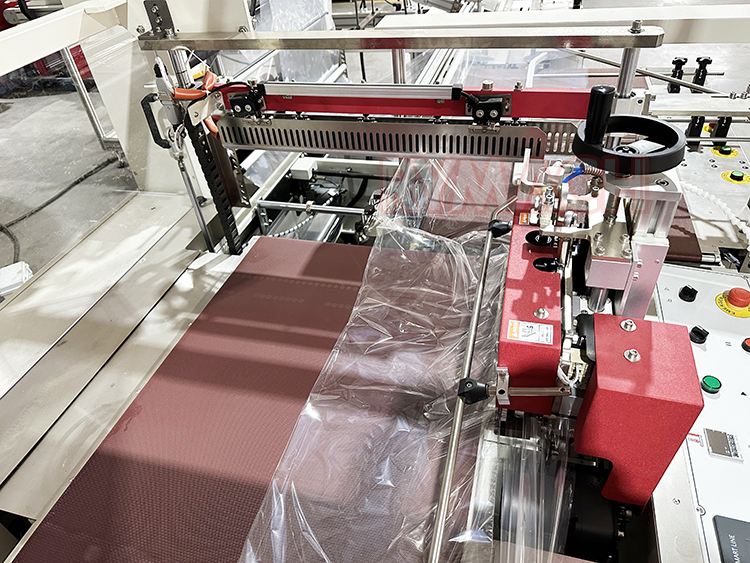

This big side sealing heat shrink wrapping & sealing machine features an extra-wide sealing design, enabling packaging for large-size, wide and irregular products, as well as multi-piece combined packaging. The sealing knife ensures stable and even heating, delivering firm, smooth and beautiful sealing without film sticking, burning or cracking. It runs reliably with high sealing and cutting speed, perfectly matching continuous production lines to greatly improve packaging efficiency. Easy to operate and adjust, compatible with POF, PE heat-shrink films, suitable for various industries. Sturdy structure, low failure rate, cost-effective and durable, ideal for large-scale automatic packaging production.

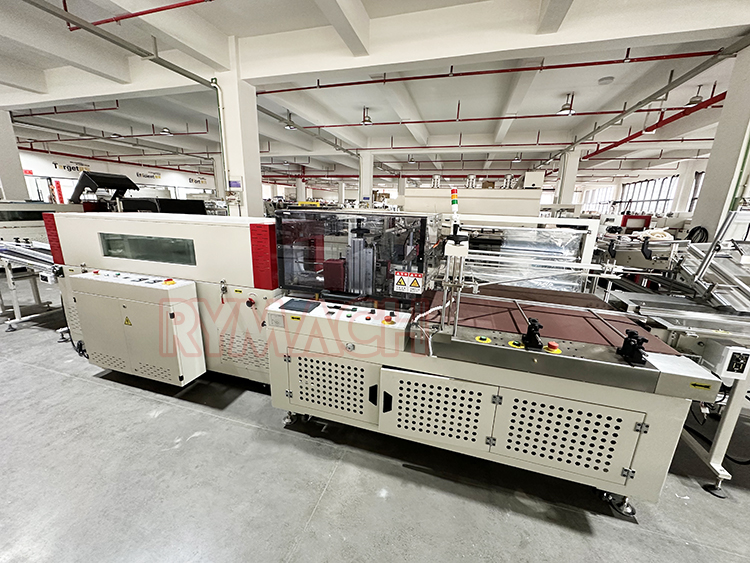

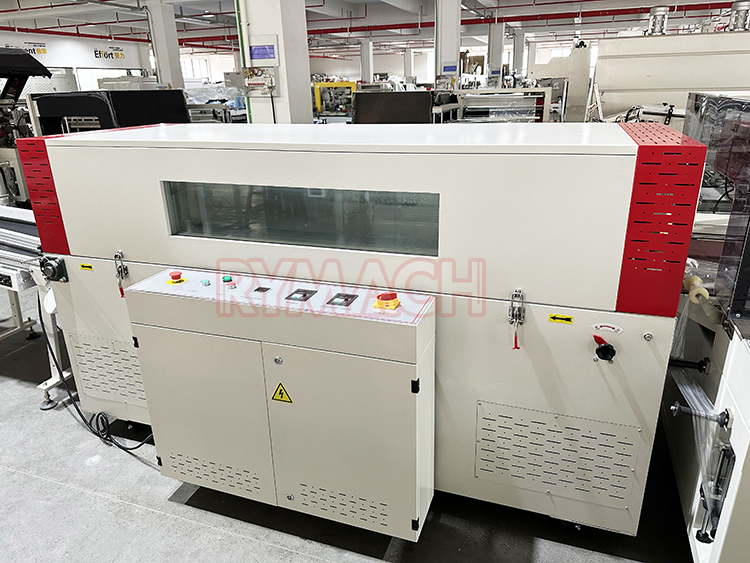

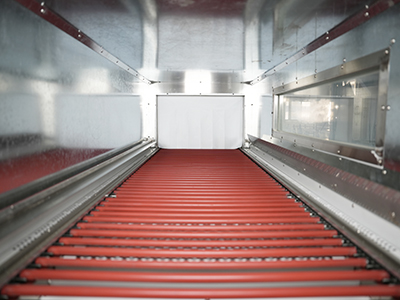

Part 4 Automatic Shrink Tunnel Machine

The shrink tunnel adopts high-quality insulation material with excellent heat retention, effectively locking in heat and saving more energy, which greatly reduces long-term operating costs. With uniform hot air circulation and stable temperature inside, it delivers perfect shrinking effect: the film fits tightly and smoothly on products without wrinkles or scorches, ensuring attractive finished packaging. Equipped with high-performance motor and durable conveyor rollers, it runs stably, wear-resistant and long-lasting, suitable for long hours and high-intensity production with low failure rate.

Sample Packed
