Applicability

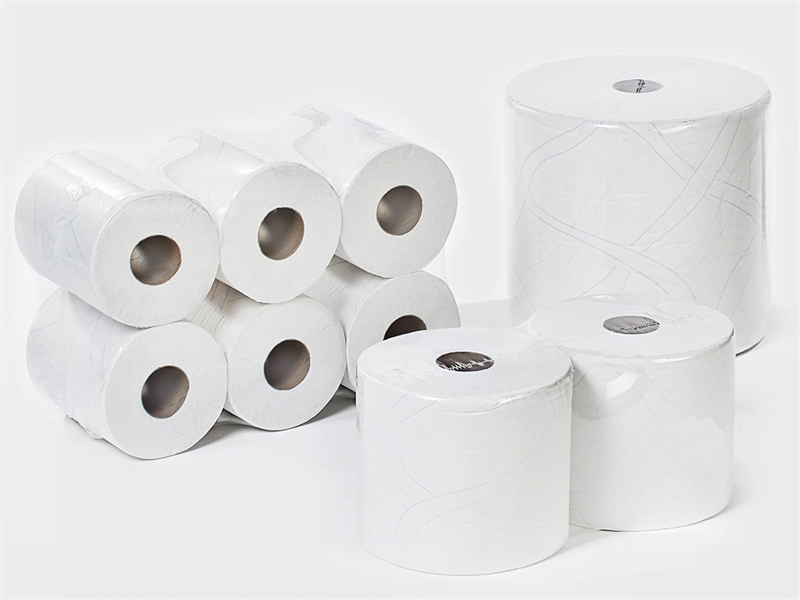

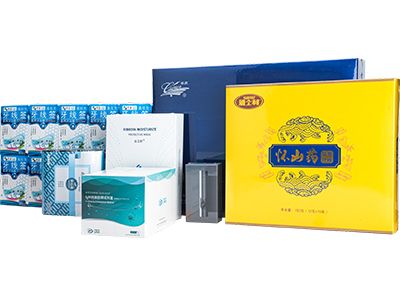

This machine is suitable for single or group products packaging of hardware, food, pharmaceuticals, books, CDs, glass products, paper towels, cards, photo frames, picture frames, aluminum profiles, wood products, pesticide bottles and other products.
|
MODEL
|
RGL-5525
|
|
Sealing Type
|
Side Seal Reciprocating Type
|
|
Installed Power
|
380V; 50-60HZ; 3Phase
|
|
Packing Capacity
|
50-60 packs per minute (depends on product size)
|
|
Sealing Height
|
220MM
|
|
Packing Width
|
450MM
|
|
Product Size
|
Width+Height≤450mm; Length: Infinite.
|
|
Film Type
|
Center Folded POF Film
|
|
Max Film Roll Size
|
750MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
5.5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Machine Material
|
Carbon Steel
|
|
Sealing Machine Dimensions
|
1610 X 900 X 1530 MM
|
|
Sealing Machine Weight
|
1505KGS
|
|
MODEL
|
RT-5530
|
|
Installed Power
|
380V; 50-60HZ; 3Phase
|
|
Oven Size
|
2400MM (L), Entrance 550(W) X 300(H) MM
|
|
Conveyor Speed
|
Variable
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Rated Power Consumption
|
16 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
1550 X 700 X 1300 MM
|
|
Tunnel Weight
|
480KGS
|

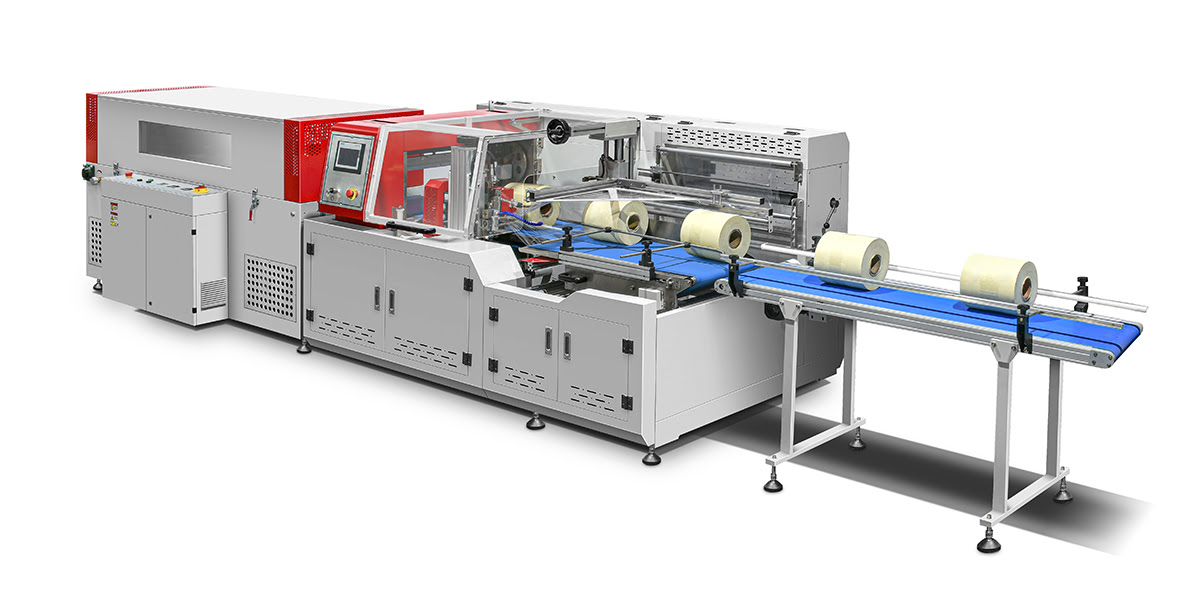

Part 4 Automatic Film Packing Machine
|
|
|
|
Adopts high-speed reciprocating side sealing structure, with stable and reliable operation. It delivers neat, firm and beautiful sealing, no scorching, no breaking, no film sticking. With strong adaptability to various product sizes and packaging films, it runs smoothly at high speed, low failure rate, easy adjustment and maintenance. Greatly improves packaging efficiency and appearance quality, ideal for automatic high-speed production lines.
|
Part 4 Shrink Tunnel Machine
|
|
|
|
This heat shrink tunnel is equipped with internal air circulation system and visual observation window. The internal circulating hot air ensures even and stable heating, making the shrink effect smoother and more attractive. The visual window allows real-time monitoring of the packaging process safely and intuitively. It features fast heating, small temperature difference and high energy efficiency, suitable for various films like POF and PE. Stable performance and low failure rate greatly improve product appearance and production efficiency.
|
