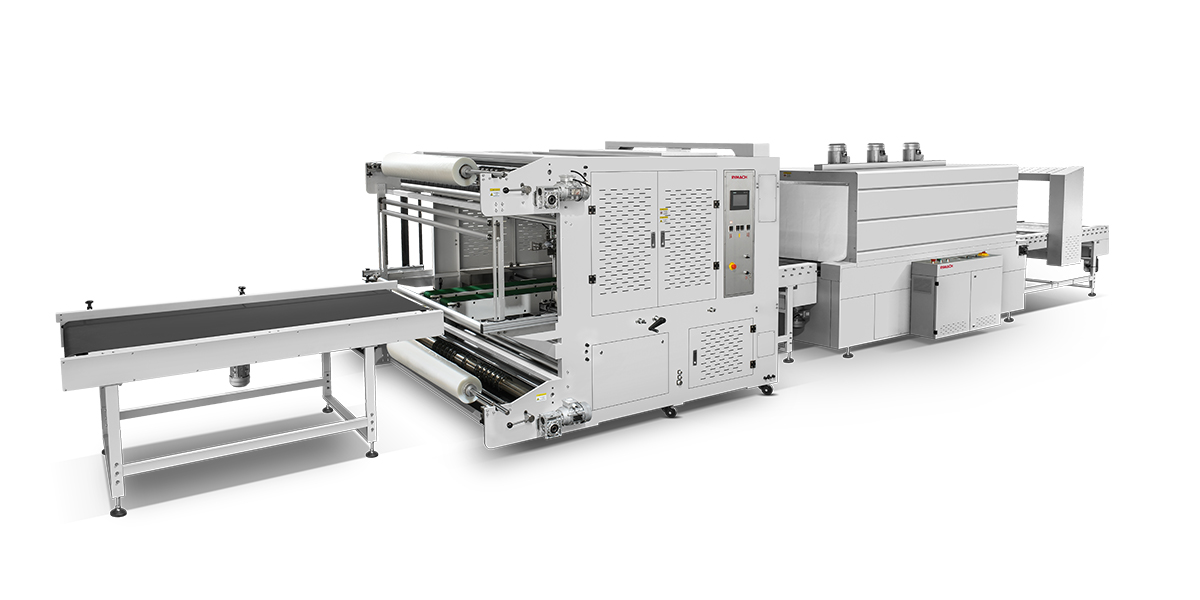

RSG-1000

Automatic Fours Sides sealing Shrink Packing Machine

View Video

Send Inquiry

Product Details

Applicability

Longer and wider products such as flooring boards, windows, big boxes, wood pallets, etc.

MODEL	RSG-1000
Sealing Type	Four Sides Sealing, Full Closed Sealing
Installed Power	380V/50-60HZ/3Phase
Packing Capacity	5-10 Packs per Minute (Depends on Product Size)
Sealing Height	500MM
Packing Width	1400MM
Product Size	Width + Height ≤ 1400MM
Film Type	Single layer POF/ PE Film
Max Film Roll Size	1800MM (Width) X 280MM (Outer Diameter)
Power Consumption	5 KW
Working Height	780-850 MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Operating Panel	Siemens Colorful Touch Screen, PLC
Sealing Machine Weight	1980KGS
Sealing Machine Dimensions	2300 X 1500 X 1100 MM
SHRINK TUNNEL
Oven Size	Depends on product size (Length, width and height)
Conveyor Speed	Variable, 40 M/Min
Working Height	780 - 850 MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	2500 X 1100 X 1270 MM
Tunnel Weight	1835KGS

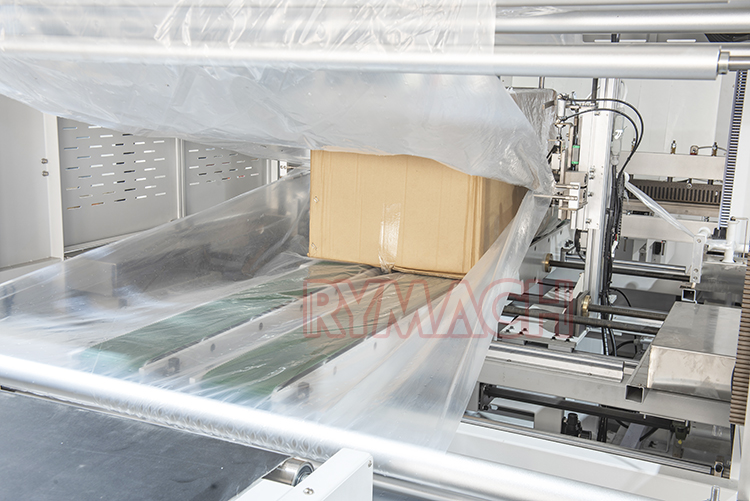

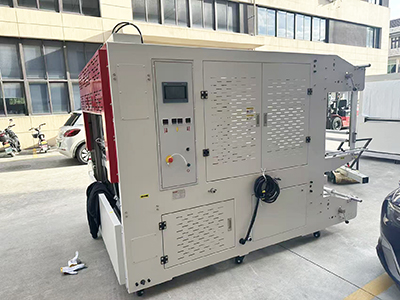

Part 4 Automatic Film Packing Machine

This large-scale sealing and cutting machine adopts a wide double-edge cutting structure, with a larger sealing range, suitable for extra-wide and large-sized products. Equipped with dual independent temperature control system, it ensures stable high-speed operation, firm and flat sealing, no film sticking, no breaking, no burrs. Featuring stable performance and low failure rate, it is ideal for high-speed automatic production lines. One-step forming, efficiency doubled, greatly improving the packaging quality and output of large & wide products.

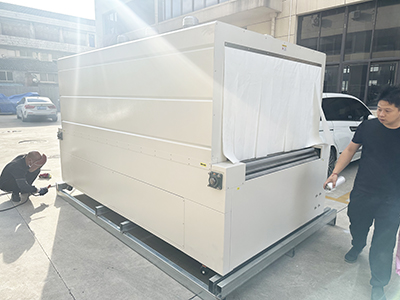

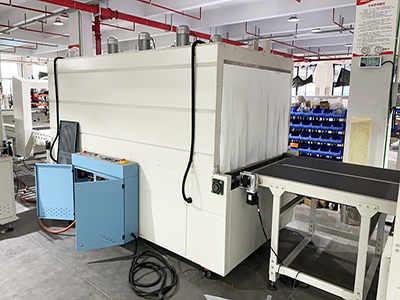

Part 4 Shrink Tunnel Machine

This large shrink tunnel is specially matched with double-edge cutting packaging machine, featuring strong hot air circulation and precise temperature control system. It provides uniform and stable heating, ensuring perfect shrink effect with tight, smooth and beautiful appearance for large and wide products. With high efficiency, energy saving, good sealing and strong stability, it is suitable for high-speed and large-volume production lines, greatly improving packaging quality and overall production efficiency.

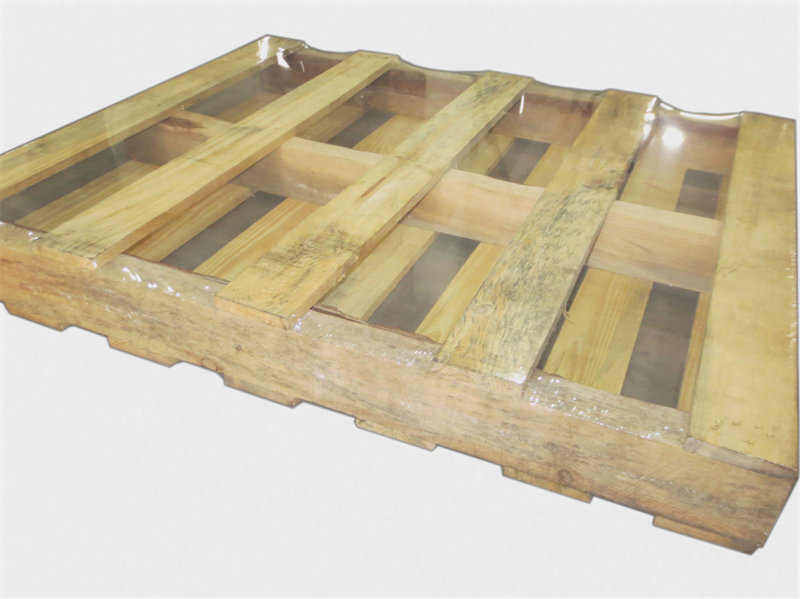

Sample Packed

Layout

RG-4020 + RT-4525

RG-6525 + RT-6030

RGL-5525 + RT-5530

RG-4020 + RT-4525

RGL-5525 + RT-5530
